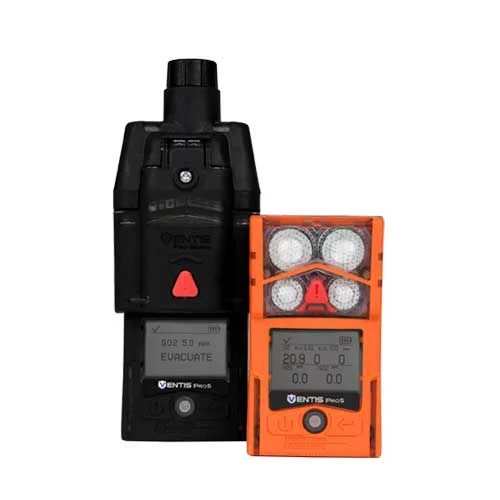

Ventis Pro 5 multi gas monitor with PASS Ex, Cl2, CO2, CO, H2S, HCN, NO2, NH3, O2, PH3, SO2

This device is mainly used as a 4 gas monitor however, the Ventis Pro 5 can be equipped with many sensor configurations to continuously detect up to 5 gases. It can be equipped with an aspirated pump for use on confined spaces. For optimal safety, it features a panic button and a "man in distress" alarm. It also enables user and sites follow-up thanks to the iAssign technology.

The Ventis Pro 5 multi gas detector assets

• Sensors configuration flexibility to detect up to five gases
• Equipped with a pump for use in confined spaces of without pump for a personal protection
• Customizable start up messages, action messages in case of alarm, acknowledgable gas alarm
• Panic alarm and mandown alert dedicated button
• Users and sites follow up with iAssign™ technology
• IP68 approved, resistant to dust and water, guaranteed lifetime*
• Compatible with almost any Ventis™ MX4 accessory
• Maintenance and deadline reminder

The Ventis Pro 5 multi gas monitor technical specifications

• Alarms:
  - Four LED visual alarms (two red, two blue)
  - 95 decibels (dB) audible alarm at 10 cm
  - Vibrating alarm
• Ingress protection: IP68 (immersion at 1.5 medeter during 1 hour)
• Case material: Polycarbonate with rubber overmold fousing
• Dimensions: 104 x 58 x 36 mm without pump / 172 x 67 x 65 mm with pump
• Weight: 200 g without pump • 390 g with pump
• Operating temperature range: from -40 °C to 50 °C
• Humidity range: from 15% to 95% non-condensing (continuous)
• Display: backlit liquid crystals display (LCD)
• Power supply and run time:
  - Rechargeable lithium-ion battery with LEL: (12 hours at 20 °C typically) - without pump
  - Rechargeable lithium-ion battery with LEL: (24 hours at 20 °C) - without pump (18 hours at 20 °C) - with pump
  - Rechargeable lithium-ion battery with IR (36 hours at 20 °C) - without pump
  - Rechargeable lithium-ion extended battery with IR (72 hours at 20 °C) - without pump (32 hours at 20 °C) - with pump
• Comes with calibration cup (Ventis), sampling hose (Ventis with pump), reference guide
• Certifications:
  UL
  Clase I, division 1, groups A, B, C and D, in T4 Class II, division 1, groups E, F et G, in T4 Class I, zone 0,AEx ia IIC, in T4 Class I, zone 1, AEx d ia IIC, in T4, with IR sensor
  ATEX
  Equipment group and category II 1G, Ex ia IIC, with Ga protection category, in T4. Equipment group and category II 2G, Ex d ia IIC, with Gb protection category, in T4, with IR sensor
  IECEx
  Class I, zone 0, Ex ia IIC, with Ga protection technique, in T4 Class I, zone 1, Ex d ia IIC, with Gb protection technique, in T4, with IR sensor
  CSA
  Class I, division 1, groups A, B, C et D, in T4 Class I, zone 1, Ex d ia IIC, in T4

The Ventis Pro 5 LENS™ Wireless technology

Thansk to the LENS™ Wireless technology available with Ventis Pro multigas detectors, lone operators are not isolated anymore. Once a detector enters in alarm because of a gas hazard a man in distress alert or a panic situation, every connected peer will be instalnly alerted about the danger.

When dealing with any hazard, the time factor is essential and each second counts. The LENS™ Wireless technology available on the Ventis Pro 5 multi gas monitorensures instant availability of surrounding people.

With the Ventis Pro LENS Wireless option, connect up to 25 devices to create a dynamic network on your worksite. LENS Wireless fits in any installation within minutes regardless of its size. No computer, no infrastructure, no configuration required…
