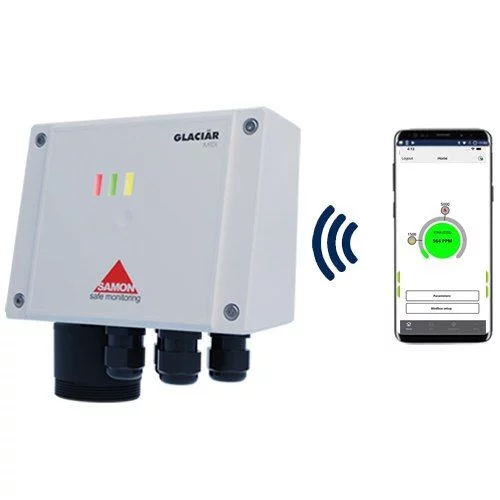

Refrigerant gas detectors (HFO, HFC, HC, CO2 & NH3) GLACIÄR MIDI

GLACIÄR MIDI detector assets

Equipped with two alarm relays for servo-controls, visual status indication via LED, a digital output (RS485 Modbus RTU), and selectable analog outputs (4-20 mA, 1-5V, 0-10V), GLACIÄR MIDI is a refrigerant gas detector that can be used locally in stand-alone mode, or connected to a data logger or supervision system.

GLACIÄR MIDI stand-alone detectors feature broadband sensors with a reference gas, offering the significant advantage of answering to most refrigerant gases with only five reference gases.

They detect HFO R1234yf or R1234ze (R32), HFC (R134A), HCFC, hydrocarbons (R290), NH3 (ammonia), and CO2 (carbon dioxide).

Thanks to the SAMON GLACIÄR app (compatible with Android and iOS), users can intuitively operate and maintain their refrigerant gas detection system without training or specialized tools.

Technical specifications of the refrigerant gas detector GLACIÄR MIDI

• Supply voltage: 15-24 Vac/Vdc (auto selection)
• Cells: Temperature-compensated pre-calibrated probes
• Status indicator: High-intensity LED
• Relay output: 2 configurable SPDT relays 1A/24Vdc (resistive load)
• Analog output: 1-5V, 0-10V, 2-10V, 4-20mA (default)
• Digital communication: RS485 Modbus RTU
• Parameter setting: Bluetooth via SAMON GLACIÄR app or by switch
• Dimensions: 134 x 102 x 54 mm
• Weight: 430 grams
• Ingress rating: IP67
• Polycarbonate housing
