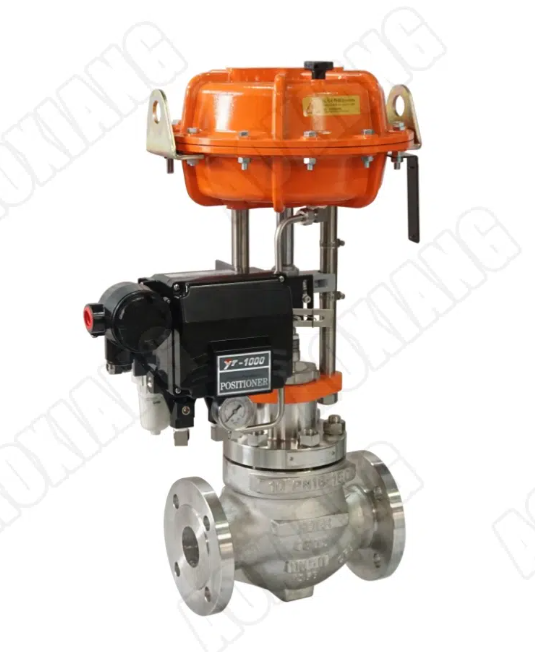

Pneumatic Control Valve

Model Number: ZJHP

Nominal Size: DN20~DN200mm

Structure: Single-seat piston type

Valve Material: Cast steel (WCB), Stainless steel (304, 316, 316L)

Nominal Pressure: PN16, PN40, PN64

Applicable Temperature: -17℃~450℃ (Specific to product details)

Applicable Medium: Gas, liquid, steam, etc.

Product Features: Low pressure loss, stable output, large flow, smooth passage, etc.

Product Introduction:

A pneumatic control valve uses compressed air as its power source and, with the help of related valve accessories, drives the valve to receive control signals and adjust various process parameters of the medium in the pipeline, such as flow rate, pressure, temperature, and liquid level. Pneumatic control valves are characterized by simple control, fast response, and intrinsic safety,
