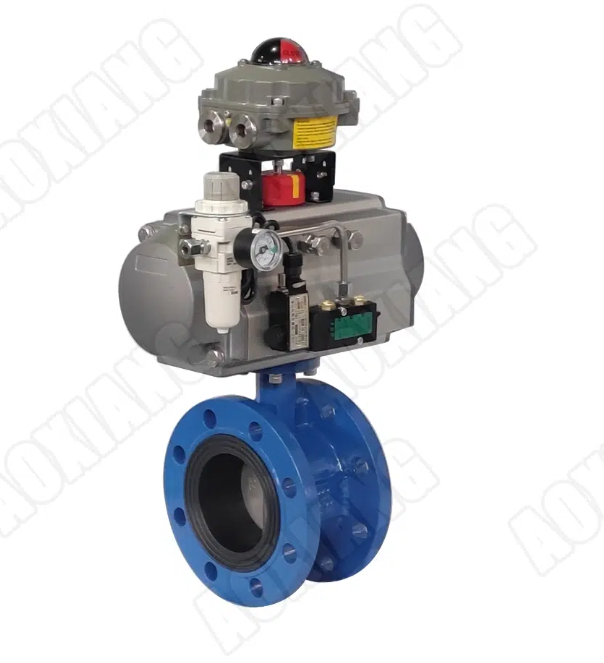

Pneumatic Butterfly Valve

Valve Model: D641X, D641F, D643H

Nominal Size: DN50~DN1200

Structural Form: Centerline, Double Eccentric, Triple Eccentric

Valve Material: Cast Iron, Carbon Steel, Stainless Steel, etc.

Nominal Pressure: PN10, PN16, PN25, PN40

Applicable Temperature: Soft Seal ≤ 150℃, Hard Seal ≤ 450℃

Applicable Medium: Air, Water, Steam, Oil, Corrosive Medium, etc.

Product Features: Tight Sealing, Suitable for High Pressure and Large Diameter Applications

Product Introduction:

A pneumatic butterfly valve consists of a butterfly valve equipped with a pneumatic actuator. The pneumatic actuator drives the disc to rotate 90 degrees through the air source pressure. According to the working mode, it can be divided into two-position type and intelligent regulating type. That is, it can be used for two-position control to fully open or close the valve, or a valve positioner can be added to the actuator and the corresponding signal can be input to adjust the disc of the pneumatic butterfly valve from 0 to 90 degrees arbitrarily.
