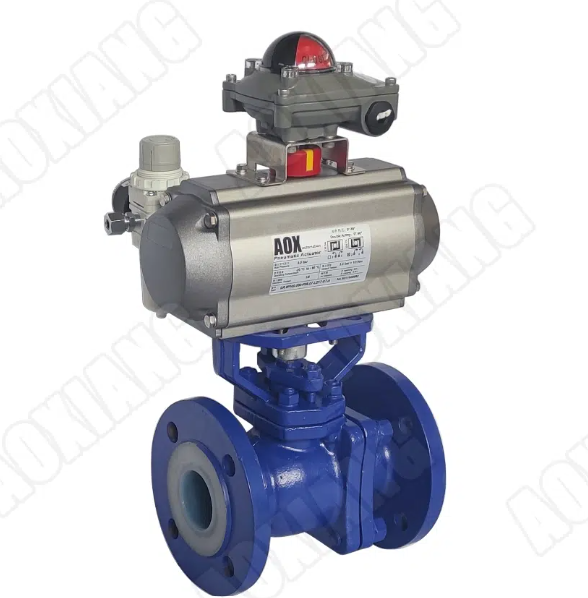

Pneumatic Ball Valve

Model Number: Q641F, Q641H

Nominal Size: DN15~DN300

Structure: O-type floating ball

Valve Material: Carbon steel, Stainless steel 304, 316, 316L, etc.

Nominal Pressure: PN16, PN25, PN40, PN64, PN100

Applicable Temperature: -40~450℃

Applicable Medium: Gas, steam, liquid, oil, corrosive medium, etc.

Product Features: Compact structure, fast opening and closing, large flow capacity, good sealing performance

Product Introduction:

A pneumatic ball valve consists of a ball valve, a pneumatic actuator, and a pneumatic control system. Pneumatic actuators are generally divided into two types: on/off and regulating. According to the specific requirements, various accessories can be configured for the pneumatic ball valve to customize various control modes, such as explosion-proof type, normally open/closed spring return type, and intelligent regulating type.
