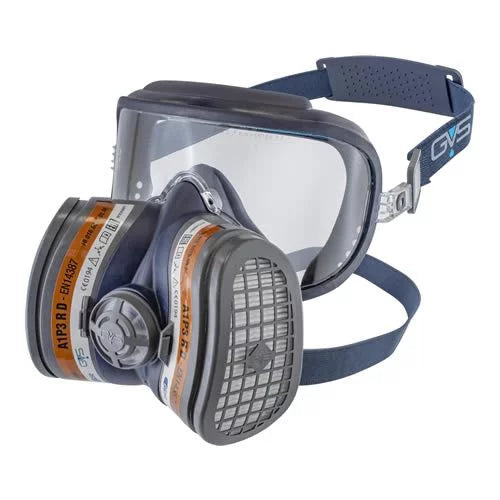

GVS Integra respirator mask and safety goggles

GVS Integra: the new ¾ mask system

Very light, compact and available in 2 sizes, Elipse Integra masks perfectly match the shape of the face and guarantee an optimal field of vision. The polycarbonate screen is treated with an anti-fog (N) and anti-scratch (K) coating greater than the standard usually found on the market.

Exceptional comfort

Thanks to the flexibility properties of TPE (Thermoplastic Elastomer), Integra masks are particularly comfortable to wear even for long periods of time. They are hypoallergenic, odorless, FDA approved and latex and silicone free. The wide non-return valve in the center minimizes the user's breathing resistance and reduces fogging inside the mask.

Protection properties

Depending on the chosen filter cartridge type, Elipse Integra respirator masks are effective against solid (dust) or liquid (mist and fine droplets) particles and organic vapors with a boiling point above 65°C like solvents, hydrocarbons, paints, pesticides, etc. They are acclaimed when a protection of the mucous membranes of the eyes is necessary in addition to respiratory protection.

Integra respirator applications

Integra masks are mainly available as 2 types of respiratory protection:

• Protection against solid or liquid particles with the HESPA® (High Efficiency Synthetic Particulate Particulate Airfilter) + P3 (R D) filter providing protection over 99.95% (minimum efficiency)
• Combined solid or liquid particulate protection (with HESPA filter) and organic vapors with a boiling point above 65 ° C (with a layer of activated carbon).

Integra technical specifications

• Mask: blue TPE (thermoplastic elastomer), latex-free, silicone-free, odor-free, and non-allergenic material.
• Goggles: Polycarbonate with anti-scratch and anti-fog coating.
• Filters: Activated carbon in an ABS shell (A2) Hydrophobic mechanical HESPA (P3) type
• Media filter: synthetic with a molded and encapsulated TPE insert.
• Head and neck elastic rubber band.
• Protection degree:



  P3 protection: > 99.95% (minimum efficiency)

  A2P3 protection: 5000 ppm organic vapors (> 65°C)

• Weight (mask + filters):


  A2P3 mask with filters: 324 grams

  P3 mask with filters: 209 grams


• Operating range: -5 to +55°C
• Dimensions:


  Mask : 170 x 165 x 190 mm

  P3 filters: 12 mm x 94 mm x 50 mm

  A2P3 filters: 48,5 x 94,5 x 60 mm

• Certifications:


  Mask compliant with EN140 : 1998 & EN166 2.F.K.N.

  Filters compliant with EN143 : 2000/A1 P3 (R D) à P3 & EN14387 à A1P3

  CE certified masks and filters.

• Shelf life:


  A2P3 mask with filters: 3 years


  P3 mask with filters : 5 years
