PROTEC GAS

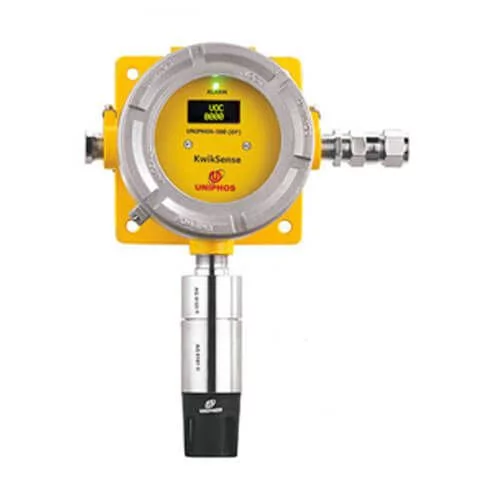

Fixed VOC detector KwikSense PID (volatil organic compounds)

Fixed VOC detector KwikSense PID (volatil organic compounds)

Regular price $1,995.00
Regular price Sale price $1,995.00
Sale Sold out

The KwikSense PID VOC detector is available in 2 models depending on the needs and applications: The KwikSense Lite PID with display, 4-20 mA output, and one alarm relay, and the KwikSense PID with display, 4-20 mA, and MODBUS outputs, three alarm relays and optional HART protocol and SIL2 certification.

KwikSense PID VOC detector assets

The VOC detector is certified ATEX & IECEx (gas and dust). With 6 pre-calibrated cells, the VOC transmitter offers improved accuracy. Its digital display allows one to read the measurement information clearly and quickly. The monitor is easy to use with a non-intrusive set-up of the device on-site. Depending on the model, the KwikSense PID can contain 1 or 3 alarm relays that are easily configurable.

Many accessories are available for both versions of the KwikSense PID VOC detector, such as a calibration cap, gas collector, weather shield, or duct mounting kit.

VOC detector applications areas

  • Industrial paints, coatings and solvents
  • Chemical and petrochemical industries
  • Pharmaceutical sector
  • Paper and pulp industry
  • Wastewater treatment plants
  • Industrial hygiene (control or monitoring)

Technical specifications of KwikSense PID detector

Common features

  • Fixed VOC Detector : Measurement of volatile organic compounds
  • Cell type: 10.6 eV photoionisation PID lamp
  • Interface: Calibration and configuration via a non-intrusive magnet
  • Supply voltage: 18 V to 30 VDC
  • Display: 8 x 2 OLED display + three-colour status LED
  • Load resistance: 600 Ω (max)
  • Power consumption: < 3 W
  • Housing: Explosion proof - Cast aluminium alloy or SS-316
  • Ingress Protection: IP66
  • Cable entries: ½" NPT (2 entries)
  • Connection: 3 or 4 wires
  • Dimensions:
    - Approximate diameter: 150 mm
    - Height: 110 mm
  • Weigh: Cast aluminium alloy: 2.5 kg, SS 316: 5.2 kg
  • Operating conditions:
    - Temperature: -20 to 60°C
    - Humidity: 0 - 95% RH (non-condensing)

VOC KwikSense detector

  • Outputs : 4-20 mA, RS485, HART (option) + 3 alarm relays
  • Certifications : ATEX, IECEx, SIL2 (optional)
  • Sensor : Interchangeable pre-calibrated smart sensor

VOC KwikSense Lite detector

  • Output : 4-20 mA + 1 alarm relay
  • Certifications : ATEX, IECEx, MED
  • Sensor : Pre-calibrated smart sensor
