Fixed Hydrogen Cyanide (HCN) Gas Detector, 0 to 10/20/50/100 ppm
Fixed Hydrogen Cyanide (HCN) Gas Detector, 0 to 10/20/50/100 ppm
Regular price
$1,127.00
Regular price
Sale price
$1,127.00
Unit price
per
Couldn't load pickup availability
Low price HCN hydrogen cyanide fixed gas detector, 0 to 10/20/50/100 ppm, with alarm light is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Powered by 24V DC, with 4-20mA, RS485, relay signal output.
ATO fixed HCN hydrogen cyanide gas detector uses high quality sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Explosion proof, suitable for different kinds of situations.
Specification
| Model | GD300-HCN |
| Detection Principle | Electrochemistry |
| Gas | Hydrogen Cyanide (HCN) |
| Range (Optional) | 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm |
| Resolution | 0.01ppm(0-10/20/50ppm), 0.1ppm(0-100ppm) |

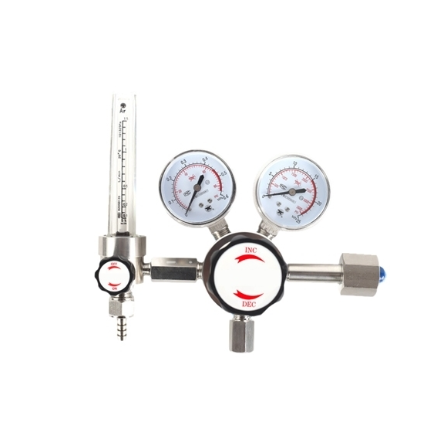

| Calibration Kit | Gas pressure regulator (calibration gas cylinder NOT included) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Signal Output (Optional) | 4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional). |
| Alarms | Sound, light |
| Display | High light nixie tube display |
| Installation | Wall-mounted, piping type, flow-type (according to the detected environment) |
| Connection | Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0 |
| Operating Time | 24h |
| Explosion-proof Grade | Ⅱ 2G Ex ia Ⅱ CT4 Ga |
| Protection Grade | IP65 |
| Certification | CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014) |
| Working Voltage | 12-36V DC |
| Case Material | Die-casting aluminum housing |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |

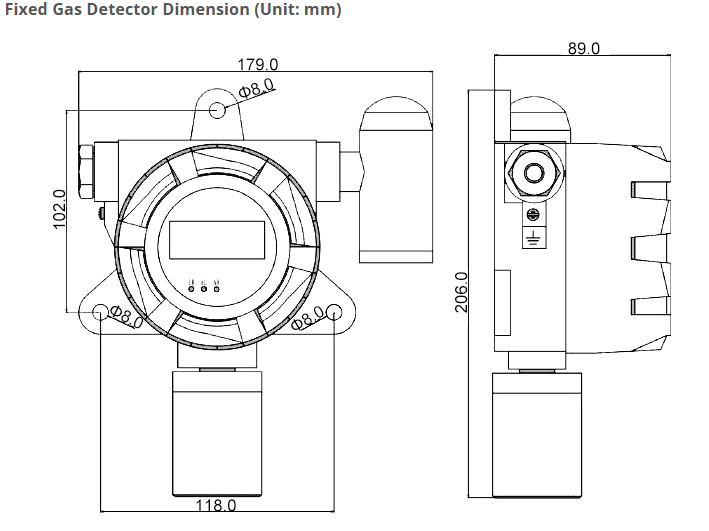

| Dimension | 206*179*90mm |
| Weight | ≤1.6kg |

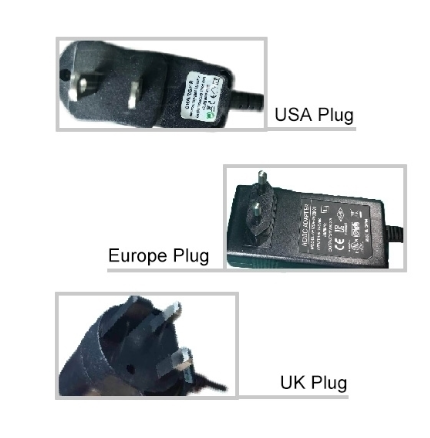

| Accessories | Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug) |
Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.
